BindingSource Class Reference

The abstract base class for all binding sources. A binding source can be bound to an action and provides an input source. It essentially represents a control bound to an action, whether it be a controller button, a key or combination of keys, or a mouse button, etc. An action may have multiple binding sources bound. An InputDevice may serve as context for a binding source, especially in the case of controllers. For example, the binding source may be "Left Trigger," but when querying a value for the binding, a specific InputDevice must be provided. Not all bindings require an input device. Keyboard or mouse bindings do not. More...

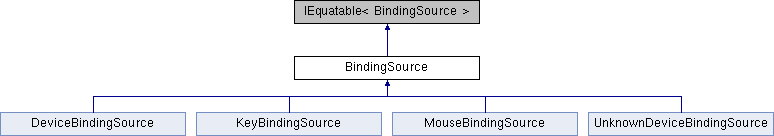

Inheritance diagram for BindingSource:

Public Member Functions
abstract float	GetValue (InputDevice inputDevice)
	Read a float value from the binding source in the context of an optional InputDevice. More...
abstract bool	GetState (InputDevice inputDevice)
	Read a bool value from the binding source in the context of an optional InputDevice. More...
abstract bool	Equals (BindingSource other)
	Determines whether the specified BindingSource is equal to the current BindingSource. More...
override bool	Equals (object obj)
	Determines whether the specified object is equal to the current BindingSource. More...
override int	GetHashCode ()
	Serves as a hash function for a BindingSource object. More...
abstract void	Save (BinaryWriter writer)
abstract void	Load (BinaryReader reader, UInt16 dataFormatVersion)

Static Public Member Functions
static bool	operator== (BindingSource a, BindingSource b)
	Determines whether the specified binding sources are equal. More...
static bool	operator!= (BindingSource a, BindingSource b)
	Determines whether the specified binding sources are not equal. More...

Properties
abstract string	Name [get]
	Gets a textual representation of the binding source. More...
abstract string	DeviceName [get]
	Gets the name of the device this binding source currently represents. More...
abstract InputDeviceClass	DeviceClass [get]
	Gets the class of device this binding source currently represents. More...
abstract InputDeviceStyle	DeviceStyle [get]
	Gets the style of device this binding source currently represents. More...
abstract BindingSourceType	BindingSourceType [get]

Detailed Description

The abstract base class for all binding sources. A binding source can be bound to an action and provides an input source. It essentially represents a control bound to an action, whether it be a controller button, a key or combination of keys, or a mouse button, etc. An action may have multiple binding sources bound. An InputDevice may serve as context for a binding source, especially in the case of controllers. For example, the binding source may be "Left Trigger," but when querying a value for the binding, a specific InputDevice must be provided. Not all bindings require an input device. Keyboard or mouse bindings do not.

Member Function Documentation

Equals() [1/2]

abstract bool Equals ( BindingSource  other )

pure virtual

Determines whether the specified BindingSource is equal to the current BindingSource.

Parameters

other

The BindingSource to compare with the current BindingSource.

Returns

true if the specified BindingSource is equal to the current BindingSource; otherwise, false.

Implemented in UnknownDeviceBindingSource, MouseBindingSource, KeyBindingSource, and DeviceBindingSource.

Equals() [2/2]

override bool Equals

(

object

obj

)

Determines whether the specified object is equal to the current BindingSource.

Parameters

obj	The object to compare with the current BindingSource.

Returns

true if the specified object is equal to the current BindingSource; otherwise, false.

GetHashCode()

override int GetHashCode

(

)

Serves as a hash function for a BindingSource object.

Returns

A hash code for this instance that is suitable for use in hashing algorithms and data structures such as a hash table.

GetState()

abstract bool GetState ( InputDevice  inputDevice )

pure virtual

Read a bool value from the binding source in the context of an optional InputDevice.

Returns

true if the value of the binding is non-zero; otherwise false.

Parameters

inputDevice

An input device which serves as the context for this source, if applicable. Pass in null when not applicable.

Implemented in MouseBindingSource, KeyBindingSource, DeviceBindingSource, and UnknownDeviceBindingSource.

GetValue()

abstract float GetValue ( InputDevice  inputDevice )

pure virtual

Read a float value from the binding source in the context of an optional InputDevice.

Returns

The value, usually in the range -1..1, but not necessarily, for example, in the case of mouse movement.

Parameters

inputDevice

An input device which serves as the context for this source, if applicable. Pass in null when not applicable.

Implemented in MouseBindingSource, KeyBindingSource, DeviceBindingSource, and UnknownDeviceBindingSource.

operator!=()

static bool operator!= ( BindingSource  a, BindingSource  b  )

static

Determines whether the specified binding sources are not equal.

Parameters

a	The first binding source to compare.
b	The second binding source to compare.

Returns

true if the specified binding sources are not equal; otherwise, false.

operator==()

static bool operator== ( BindingSource  a, BindingSource  b  )

static

Determines whether the specified binding sources are equal.

Parameters

a	The first binding source to compare.
b	The second binding source to compare.

Returns

true if the specified binding sources are equal; otherwise, false.

Property Documentation

DeviceClass

abstract InputDeviceClass DeviceClass

get

Gets the class of device this binding source currently represents.

The class of the device.

DeviceName

abstract string DeviceName

get

Gets the name of the device this binding source currently represents.

The name of the device.

DeviceStyle

abstract InputDeviceStyle DeviceStyle

get

Gets the style of device this binding source currently represents.

The style of the device.

Name

abstract string Name

get

Gets a textual representation of the binding source.

The name.

---

The documentation for this class was generated from the following file:

• Assets/InControl/Source/Binding/BindingSource.cs
